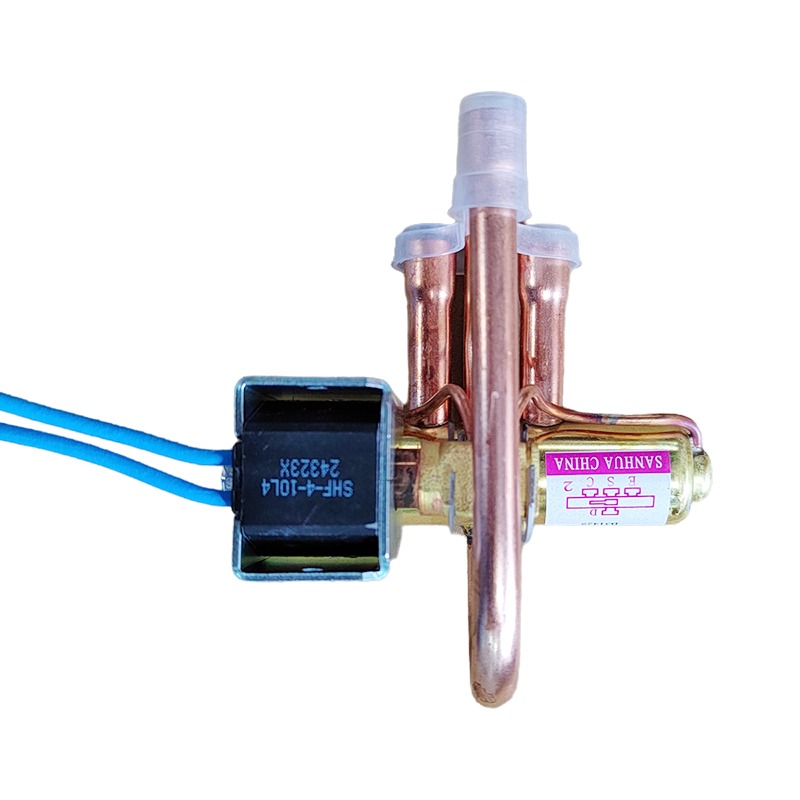

120V 4 Way Reversing Valve for 12000-18000BTU AC

SHF series 4 way reversing valves are applicable for heat pump systems such as central, unitary and room airconditioners to realize switching between cooling modeand heating mode by changing the flow path of refrigerant.

General Specification

• Wide application range
• Suitable for cooling capacities 12000-18000BTU
• Applicable for all common HCFC and HFC refrigerants such as: R22, R134a, R404A, R407C, R410A, R507
• Connection size: D side:3/8″. E S C side:1/2″
• Power Voltage: 110-120V ac 50/60Hz
• Solenoid coil wire length:1.5 meters
• Medium temperature TS min./max.: -30°C / +135°C (*)
• Ambient temperature min./max.: -30°C / +50 or +70°C (Depending on used coil)
• Relative humidity: 0 to 95% RH
• Max. operating pressure PS: 4.5 MPa (45 bar)
• Installation position:
  Coil upwards or with body axis in horizontal alignment
  Flow direction according to installation instruction
• Certifications: UL/CSA and declaration according to LVD or PED
